FRP Cable Tray

Name: FRP Cable Tray
Brand: Aerotech Fiber
Price: 280.0 INR
Availability: InStock

280.0 INR/Meter

Get a Price/Quote

Product Details:

Max. Working Load Up to 100 kg/m (depending on installation and tray size)
Deflection Less than 6 mm under max working load
Surface Finish Smooth, Glossy Finish
Conductor Material Non-conductive (FRP material provides electrical insulation)
Product Type Perforated FRP Cable Tray
Material FRP (Fiber Reinforced Plastic)
Standard Thickness 3 mm, 4 mm, 5 mm (as per requirement)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

FRP Cable Tray Price And Quantity

Price 280.0 INR/Meter
Minimum Order Quantity 1 Meter

FRP Cable Tray Product Specifications

Surface Finish Smooth, Glossy Finish
Product Type Perforated FRP Cable Tray
Max. Working Load Up to 100 kg/m (depending on installation and tray size)
Deflection Less than 6 mm under max working load
Material FRP (Fiber Reinforced Plastic)
Width 150 mm to 1200 mm (customizable)
Standard Thickness 3 mm, 4 mm, 5 mm (as per requirement)
Side Rail Height 50 mm, 75 mm, 100 mm (standard options available)
Color Yellow (custom colors available)
Dimension (L*W*H) 2.5m x 300mm x 100mm (example)
Length 2.5 meters (standard)
Weight Approximately 4 to 10 kg/m (varies with size)
Usage & Applications Industrial Cable Management / Electrical Cable Routing
Conductor Material Non-conductive (FRP material provides electrical insulation)

Installation Easy to install, lightweight and low maintenance
Non-Magnetic Yes, suitable for sensitive electronic cables
Applications Industrial plants, chemical plants, refineries, offshore platforms, and building infrastructure
Fire Retardancy Yes, meets Class 1 Fire Retardant Standards
Standards Approvals Confirms to ASTM, NEMA, and IS Standards
Water Absorption <0.5%
Operating Temperature Range -40C to +120C
UV Resistance UV Stabilized for outdoor usage
Dielectric Strength High dielectric insulation properties
Corrosion Resistance Excellent, suitable for chemical and marine environments

FRP Cable Tray Trade Information

Delivery Time 3 Days

Product Description

FRP Cable Tray Fiberglass Reinforced Plastic Cable Tray

Product Description:
We are engaged in manufacturing and supplying high-quality FRP Cable Trays designed for safe, reliable and long-lasting cable management in industrial, commercial and infrastructure applications. Manufactured using Fiberglass Reinforced Plastic (FRP) with suitable resin systems, these cable trays offer excellent corrosion resistance, mechanical strength, electrical insulation and weather resistance.

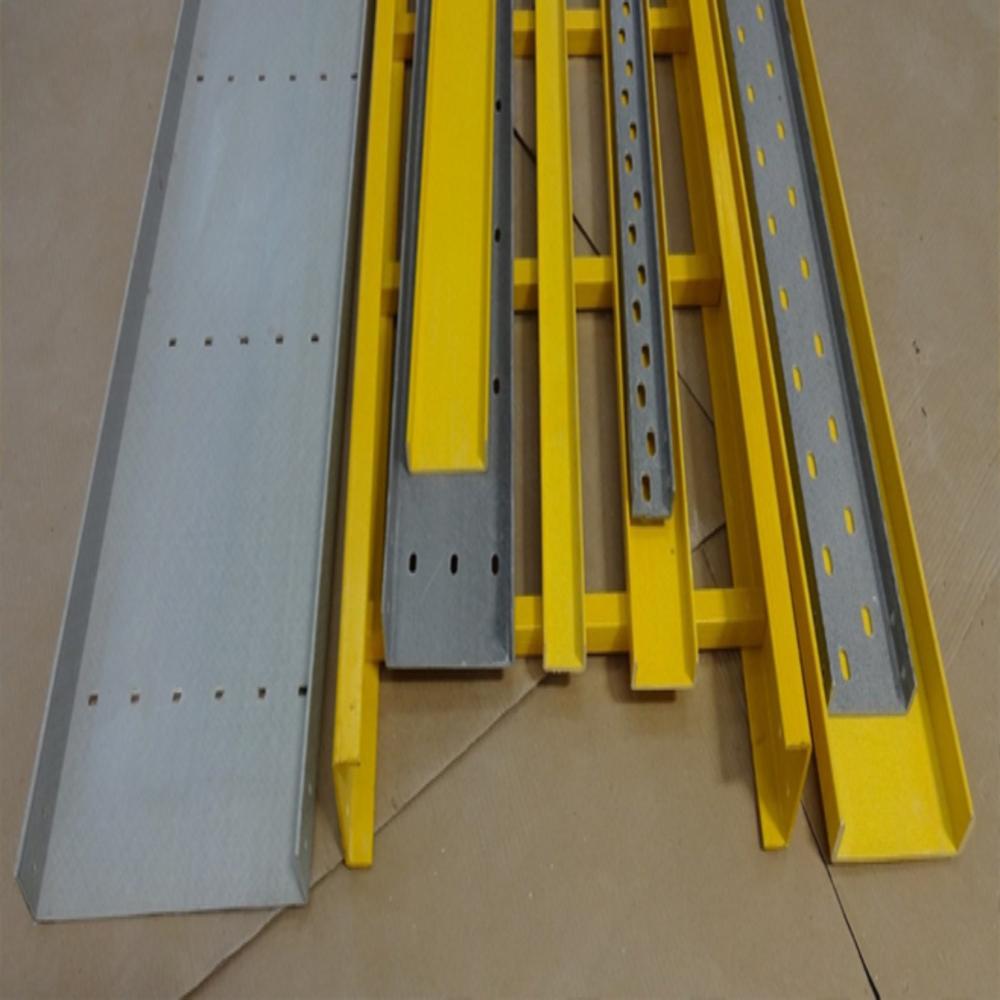

Our FRP Cable Trays are available in Ladder Type, Perforated Type, Channel Type and Trough Type, with customized dimensions as per customer requirements.

Key Features:

High-strength FRP construction
Excellent corrosion & chemical resistance
Non-conductive and non-magnetic
UV and weather resistant
Lightweight and easy to install
Fire-retardant grades available
Low maintenance and long service life
Suitable for indoor and outdoor applications
Custom sizes and specifications available
Suitable for harsh industrial environments

Versatile and Durable Cable Management

FRP Cable Trays are designed for long-term cable protection and organization in industrial, chemical, marine, and infrastructure settings. Their excellent resistance to corrosion, coupled with fire retardancy and UV stabilization, ensures reliability even in extreme climates and harsh operating conditions.

Safety and Compliance Certified

Each tray meets stringent Class 1 fire retardant standards, and is tested for high dielectric strength, making it suitable for electrical cable routing without the risk of short-circuiting. With approvals conforming to ASTM, NEMA, and IS standards, these trays provide both safety and peace of mind.

Customizable to Project Requirements

Choose from a variety of widths (150mm to 1200mm), thicknesses (3mm, 4mm, 5mm), and side rail heights to match specific project needs. Offered in standard 2.5 meter lengths and multiple color options, our trays ensure both functionality and aesthetics for any installation.

FAQ's of FRP Cable Tray:

Q: How does the FRP Cable Tray provide fire retardancy?

A: The FRP Cable Tray meets Class 1 fire retardant standards, ensuring minimal flame spread. Its material composition is engineered to resist ignition and suppress fire propagation, making it a safe choice for facilities where fire safety is critical.

Q: What are the benefits of using FRP trays in corrosive environments?

A: FRP Cable Trays exhibit excellent corrosion resistance, making them ideal for chemical plants, refineries, and marine applications. Unlike traditional metal trays, they do not rust or corrode, ensuring long-term reliability even when exposed to harsh chemicals or saltwater.

Q: When should I choose FRP trays over metal cable trays?

A: FRP trays are preferred in scenarios where corrosion, fire risk, and exposure to UV or chemicals are concerns. They are also suitable when electrical insulation is required, such as for routing sensitive electronic cables, or where non-magnetic properties are essential.

Q: Where can FRP Cable Trays be installed?

A: You can install FRP Cable Trays in a variety of locations, including industrial plants, chemical processing facilities, offshore platforms, refineries, and building infrastructure. Their design supports both indoor and outdoor use due to UV and weather resistance.

Q: What is the installation process for FRP Cable Trays?

A: Installation is straightforward due to the tray's lightweight construction. They can be easily cut, drilled, and assembled on-site with standard tools, reducing labor and installation time. Minimal ongoing maintenance is required once in place.

Q: How do the trays support electrical safety and performance?

A: The trays are non-conductive and provide high dielectric strength, making them safe for cable routing in environments with sensitive electronics. They prevent electrical hazards and minimize the risk of short-circuiting or electromagnetic interference.
